low Flow Electric & Steam heated Regulator

low Flow Electric & Steam heated Regulator
low Flow Electric & Steam heated Regulator
Product Code : XHR300
Brand Name : GCE
Product Description

Low Flow Electric & Steam heated Regulator

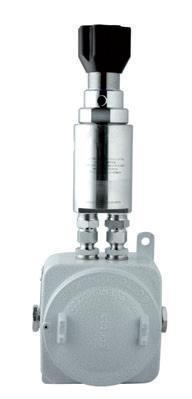

XHR-300 SERIES-'LOW FLOW' ELECTRIC AND STEAM HEATED REGULATOR DIAPHRAGM SENSED:

SPECIAL FEATURES
  • ATEX certified to EEx d IIC T3.
  • Dual , independent,100 W heaters for pre heat and re-heat of sample gas. Oxygen sample-inconel X750 Diaphragm for extra strength.
  • Large surface area for heat transfer.
  • Easy to wire circuit board with 115V or 230 supply.
  • Stylish junction box with 7 mm mounting supports.
  • Fully serviceable design.
  • Optional entry points for cable supply.

APPLICATION:
  • Natural gas sample systems.
  • Oxygen sample systems
  • Moisture sample systems

TECHNICAL DATA:

Max rated inlet pressure

300 bar (4350 psi) with PEEK seat

Outlet ranges

Up to 35 bar (500 psi)

Design proof pressure

150% max WP

leakage

Bubble tight at max WP (tested on Nitrogen)

Weight

4.1 kg (2 lbs)

STANDARD MATERIALS OF CONSTRUCTION:

Body and bonnet /main valve pin

316SS

Soft seat cone

PEEK

Valve spring

Inconel X750

Diaphragm

Inconel X750

Handwheel

Nylon

Diaphragm washer

Brass

Cartridge holder

316SS

'O' ring seals

Viton

Adjusting screw

Ali bronze

Electric Enclosure

Coated Aluminum

Compression Fitting

316SS

ORDER CODE:

Basic Model

XHR300

CV Value

06

Body material

Outlet ranges

10

Seat

K

Heat supply

1

Power cable supply

L

Porting configuration

N

XHR300

06-0.06

SS-316SS

02-0-2 bar
04-0-4 bar
08-0-28bar
10-0-10 bar
20-0-2 0bar
35-0-35 bar
K-PCTEE
(max 210 bar inlet)
P-PEAK
(max 300 bar inlet)

1-115 V

2-230 V

S-stream

L-left side

R-Right side

B-bottom side

Refer office
